Piston and liner set, 78mm dome top

D11103, DS11101C
Inc VAT: £390.00
Exc VAT: £325.00
You'll earn 390 points with this purchase

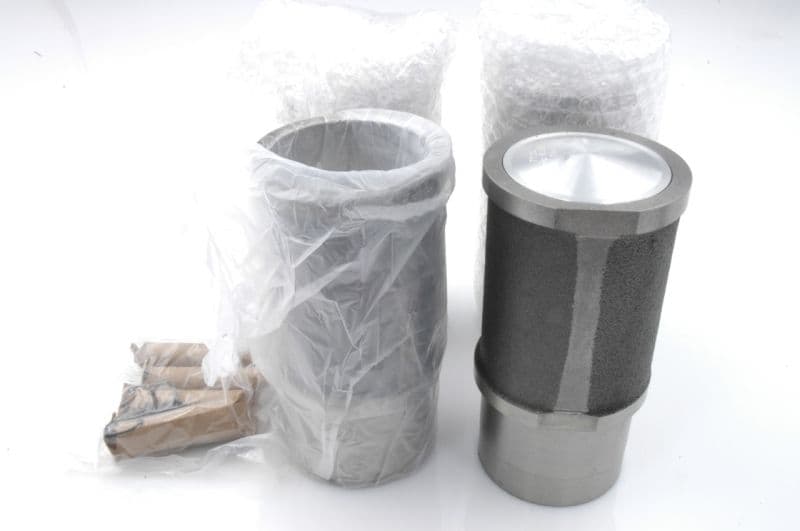

DS11101C Set of 4 pistons and cylinder liners with rings, gudgeon pins and circlips. These have a 78mm bore and a 6mm dome on top of the piston as fitted to DS19's from March 1961 until September 1965. Also originally fitted to Safari models from March 1963 until September 1965.

These are also suitable (and desirable) as replacements for the flat topped piston version used in H vans (H78 engine) with cross flow cylinder head (after 9/63) and provide a useful power increase. They are a direct fit replacement with no other changes required. These can also be used as a direct replacement in the H72 H van engine to take it from 1628cc to 1911cc, but some carburettor changes may also be required.

We have used this set in Traction Avant's and pre 9/63 H vans, but the cylinder head combustion chamber edge needs some machining to make clearance for the piston dome.
